ALPHA 320W Quantum Board
Original specification sheet with fixture images, spectrum and PAR maps.
Download 320W brochure (PDF)
QUANTUM BOARD
ALPHA 320W
Quantum Board
A full-spectrum quantum board for a compact growing space, with six selectable output positions.
2.5 µmol/J3 × 3 ft coverageFull spectrum
DESIGNED FOR YOUR SPACE
A compact board. A broad spectrum.
320WRated power
2.5µmol/J · Published efficacy
3 × 3 ftStated coverage
4.0 kgGross weight
Know your fixture.

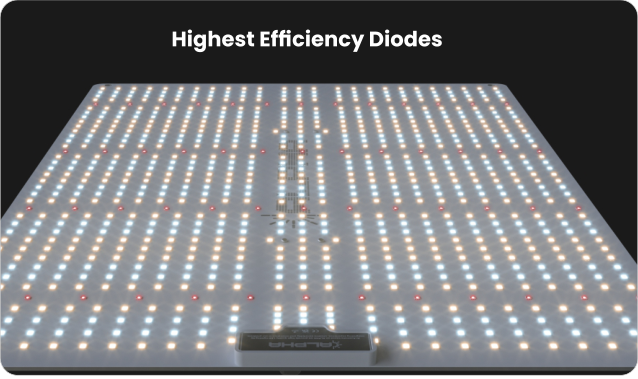

White light at 3500K and 5000K combines with 660nm deep red and 730nm far red in the published spectrum. The separate power supply and aluminium housing form a compact fixture.
Coverage is the brochure’s stated footprint. Crop, target light level and mounting height affect suitability for your setup.
OUTPUT CONTROL

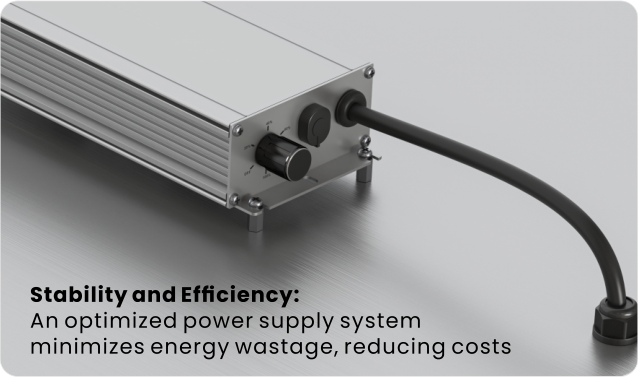

Power supply detail
The brochure shows a separate power supply with an integrated adjustment knob.
Settings: OFF / 20% / 40% / 60% / 80% / 100%.
SPECTRUM & LIGHT DISTRIBUTION
See the published performance.

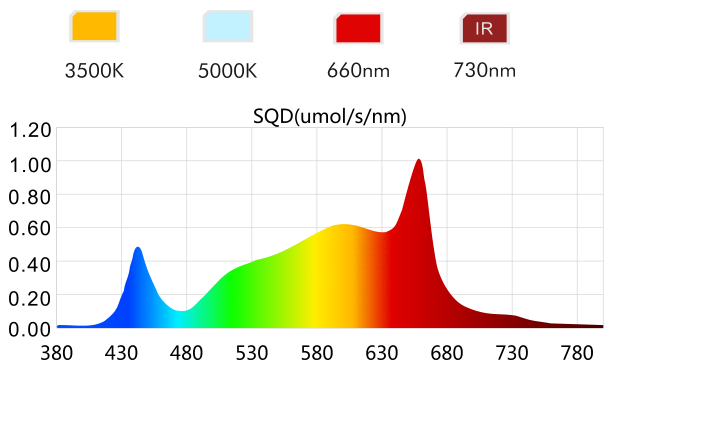

Full-spectrum output.
3500K + 5000K + 660nm + 730nm

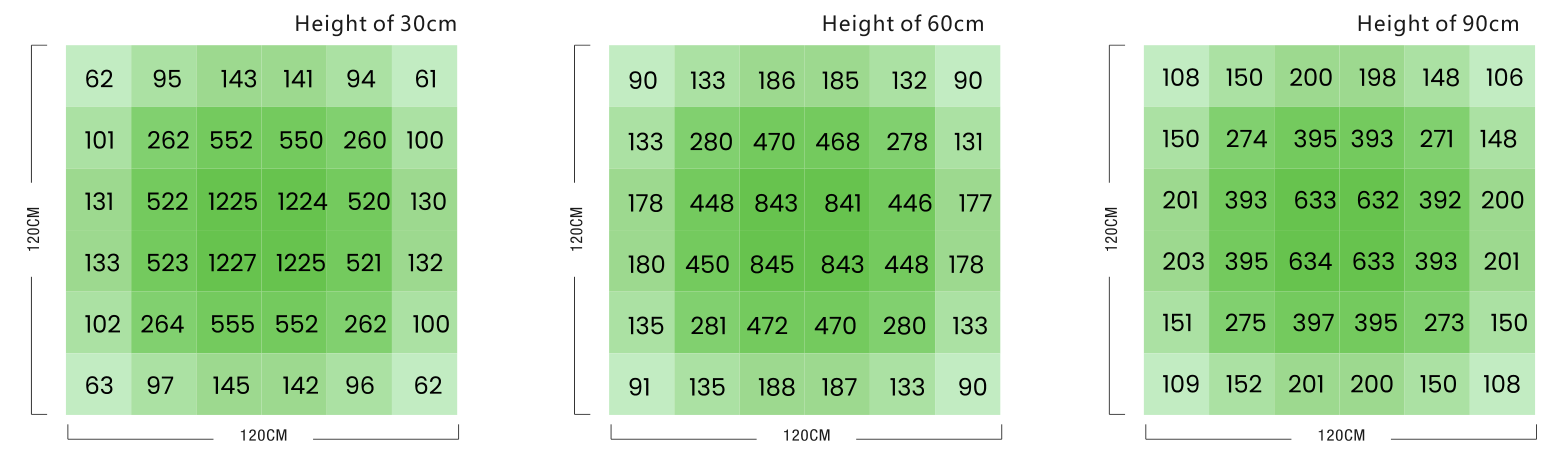

Review the spectrum chart and PAR distribution maps from the supplied product brochure alongside your canopy dimensions and mounting height.
TECHNICAL DETAILS
ALPHA 320W Quantum Board specifications.
- Input voltage
- 220–240V AC
- Rated power
- 320W +5% (as listed)
- Current consumption
- 1.33–1.45 A at 320W
- Power factor
- 0.98
- Photon efficacy
- 2.5 µmol/J
- BTU (as listed)
- 1088
- Operating temperature
- −25 to 40°C
- Control
- OFF / 20% / 40% / 60% / 80% / 100%
- Housing material
- Aluminium
- Listed lifetime
- 50,000 hours
- Certifications listed in brochure
- CE, RoHS, SAA, UKCA
- Gross weight
- 4.0 kg
- Fixture dimensions
- 600 × 450 × 67 mm
Specifications and certification names are reproduced from the supplied model brochure. Contact Alpha for current installation guidance, compliance documents and warranty terms.
