ALPHA 360W LED
Original specification sheet with fixture images, spectrum and PAR maps.
Download 360W brochure (PDF)
ALL-IN-ONE / MULTI-BAR LED
ALPHA 360W
LED
An all-in-one, three-bar LED fixture with full-spectrum output, a manual dimmer and external control.
3.0 µmol/J2 × 4 ft coverageFull spectrum
DESIGNED FOR YOUR SPACE
Three bars. One integrated fixture.
360WRated power
3.0µmol/J · Published efficacy
2 × 4 ftStated coverage
4.0 kgGross weight
Know your fixture.
The elongated three-bar layout is paired with a stated 2 × 4 ft coverage area. The published spectrum combines 450nm blue, 6500K white light and 660nm deep red.
Coverage is the brochure’s stated footprint. Crop, target light level and mounting height affect suitability for your setup.
OUTPUT CONTROL

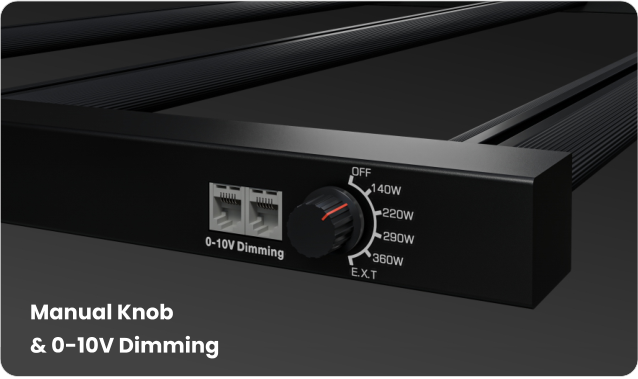

Manual knob & 0–10V dimming
Select 140W, 220W, 290W or 360W at the fixture, or use EXT for compatible external control. Confirm controller and wiring compatibility before connection.
Settings: OFF / 140W / 220W / 290W / 360W / EXT.
SPECTRUM & LIGHT DISTRIBUTION
See the published performance.

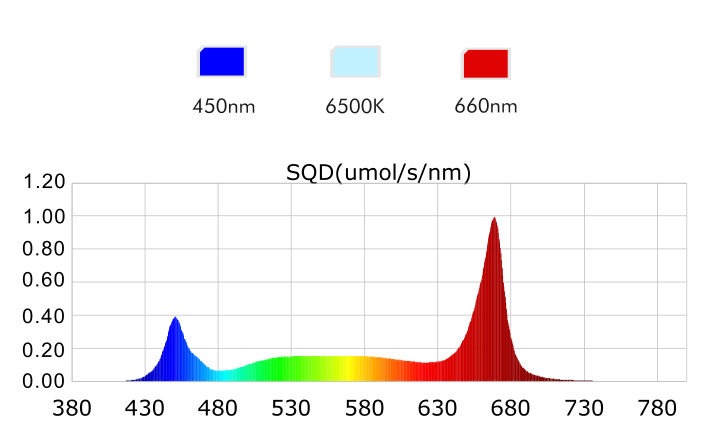

Full-spectrum output.
450nm + 6500K + 660nm

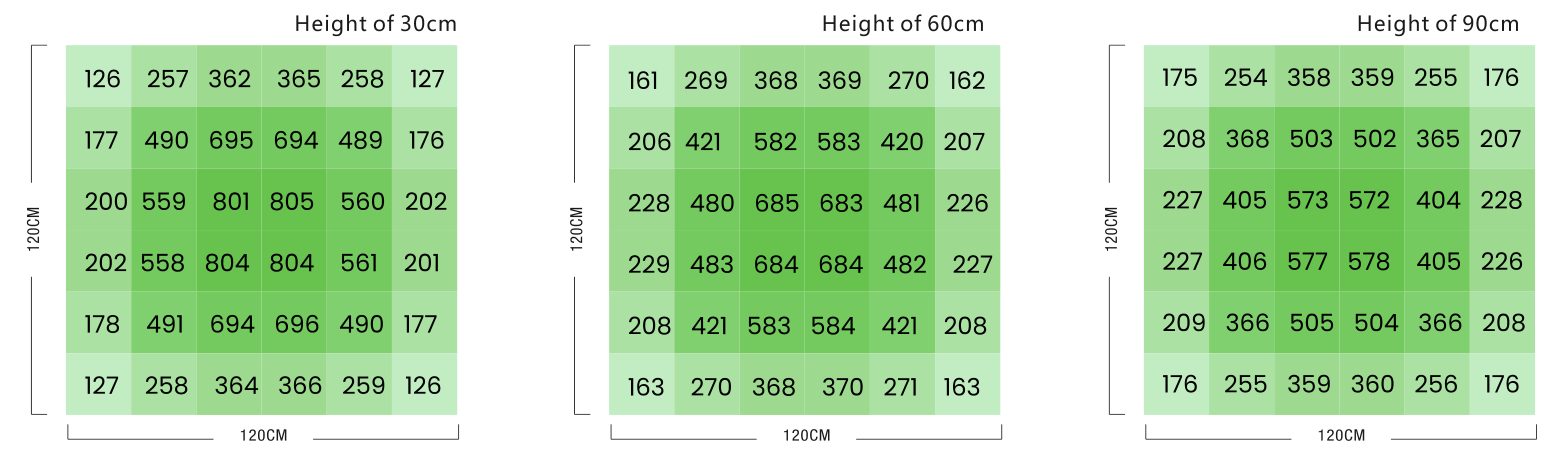

Review the spectrum chart and PAR distribution maps from the supplied product brochure alongside your canopy dimensions and mounting height.
TECHNICAL DETAILS
ALPHA 360W LED specifications.
- Input voltage
- 220–240V AC
- Rated power
- 360W +5% (as listed)
- Current consumption
- 1.50–1.64 A at 360W
- Power factor
- 0.98
- Photon efficacy
- 3.0 µmol/J
- BTU (as listed)
- 1224
- Operating temperature
- −25 to 40°C
- Control
- OFF / 140W / 220W / 290W / 360W / EXT
- Housing material
- Aluminium + iron
- Listed lifetime
- 50,000 hours
- Certifications listed in brochure
- CE, RoHS, SAA, UKCA
- Gross weight
- 4.0 kg
- Fixture dimensions
- 580 × 1065 × 38 mm
Specifications and certification names are reproduced from the supplied model brochure. Contact Alpha for current installation guidance, compliance documents and warranty terms.
DOCUMENTS & SUPPORT
The details, all together.
Match the light to your grow.
Send your canopy size, crop, mounting height and lighting requirements for product and pricing enquiries.
Ask about 360W
